Automatic Four Head Volumetric Liquid Filling Machine

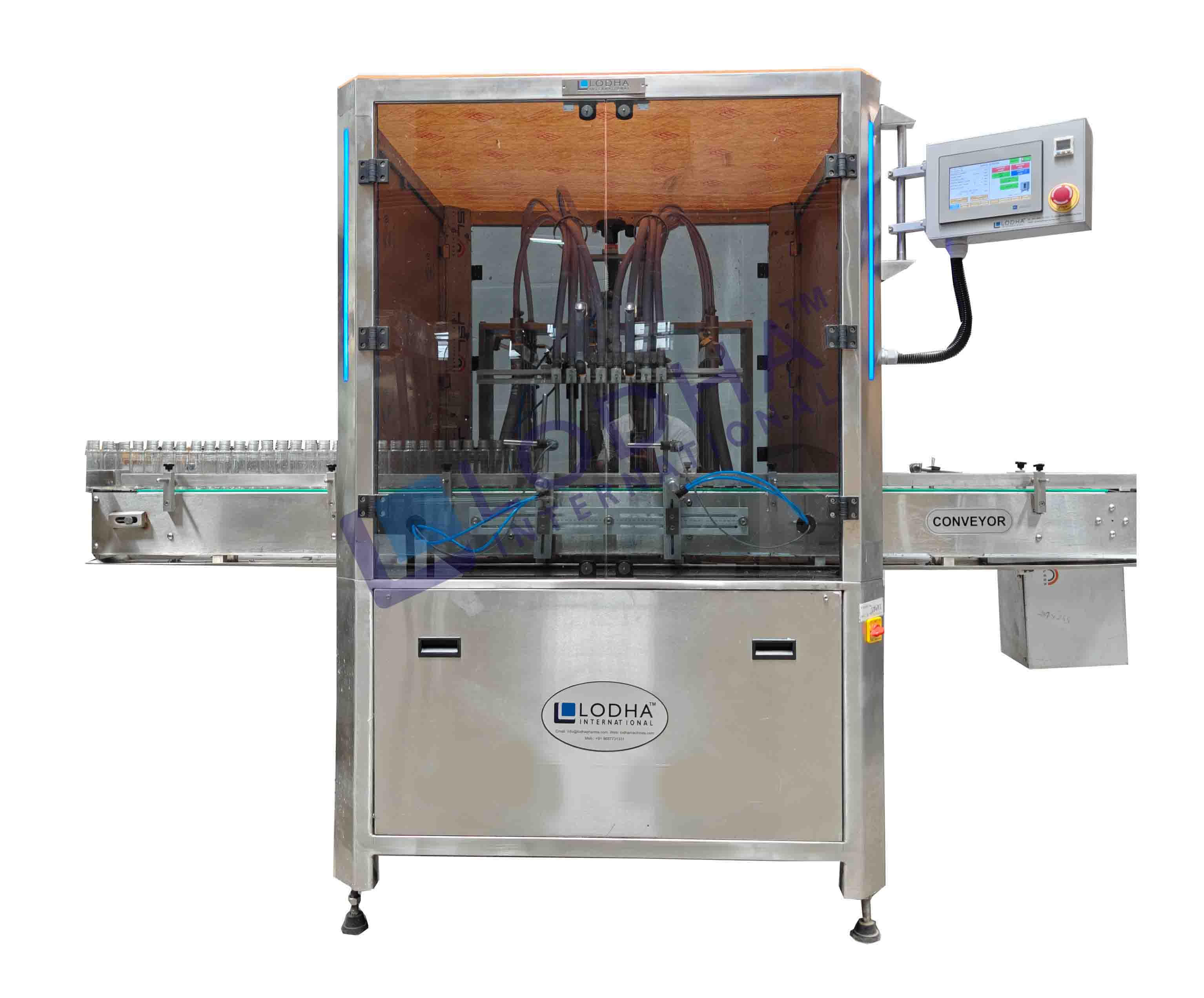

Four Head Volumetric Linear Liquid Filler

Automatic Four Head Volumetric Liquid Filling Machine

Automatic Four Head Volumetric Linear Liquid Filling Machine Model: LI-BF 4 is suitable for Bottles with maximum speed of 50 Bottles per minute. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS316 Materials.

Automatic Four Head Volumetric Linear Liquid Filling Machine Model: LI-BF 4 by Lodha Pharma! This high-speed filling machine is designed to enhance your production efficiency and ensure precision in every bottle.

With a maximum speed of 50 bottles per minute, this state-of-the-art machine is built to meet your demanding production requirements. Say goodbye to time-consuming manual filling and embrace the power of automation.

Chat with Expert
Order Now

What sets our Bottle Filling Machine apart is its versatility. The output of the machine is tailored to your specific needs, taking into consideration the nature of liquids, bottle diameter, height, neck size, and fill volume. We understand that each product is unique, and our machine ensures that your bottles are filled accurately, saving you time and resources.

Crafted with the highest quality standards in mind, the machine features a fully stainless-steel construction. This not only guarantees durability but also ensures a hygienic environment for your liquids. Every part that comes in contact with the liquids is made from SS316 materials, ensuring the integrity and purity of your products.

To further streamline your production process, we offer optional turn tables at the in-feed and out-feed. These turn tables, equipped with individual drives, synchronize with the speed of incoming and outgoing bottles, resulting in smoother operations. You can trust our machine to deliver consistent performance and minimize downtime.

Ready to take your production to the next level? Invest in the Automatic Four Head Volumetric Linear Liquid Filling Machine Model: LI-BF 4 today and experience the benefits of efficiency, precision, and reliability. Boost your productivity and increase your bottom line. Don't miss out on this opportunity to transform your business. Place your order now!

Special Features of Automatic Four Head Volumetric Liquid Filling Machine:

  • No Bottle - No Fill System, No Bottle - Machine Stop System
  • All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
  • Machine construction in SS 304 material
  • Diving Nozzle for Foam free filling
  • Very High Fill Accuracy
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Over time
  • Unique Free Spinning Bottle Seperator- No pneumatic operation
  • Built-in A.C. Variable Freq. Drive System

Technical Specification of Automatic Four Head Volumetric Liquid Filling Machine:

Model LI-BF 4
Bottle Diameter 30 mm to 100 mm
Filling Range 30 ml to 500 ml with help of Change Parts/ Syringe
Accuracy +/- 1% Depending on Liquid with Single Dose
Electrical 440 Volts, 3 Ph. 50 Hz. 4 Wire System
Power 2 H.P.
Speed 50 Bottles Per Min
Syringe Filling Range 10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height 800 – 850 mm ±
Net Weight 350 Kilograms
* Specification can be changed as per customers’ requirements

Automatic Four Head Volumetric Liquid Filling Machine Video

« Automatic Two Head Volumetric Liquid Filling Machine
Automatic Six Head Volumetric Liquid Filling Machine »

Faq's

The LI-BF 4 is a fully automatic, four-head volumetric linear liquid bottle filling machine that fills precise liquid volumes into glass and plastic bottles at speeds up to 80 bottles per minute. It is the most popular mid-scale liquid filling machine across pharmaceutical, Ayurvedic, and cosmetic manufacturing — delivering double the throughput of a two-head model with the same compact, GMP-compliant design.

Bottles are fed via an SS slat conveyor and positioned below four volumetric filling nozzles. All four nozzles simultaneously dispense a precisely set liquid volume into four bottles at once. The diving nozzle system fills each bottle from the bottom up — eliminating foam and turbulence. Filled bottles exit through the outfeed for transfer to capping or labeling. The "No Bottle – No Fill" sensor halts filling automatically when no bottle is present.

The LI-BF 4 delivers a maximum output of 80 bottles per minute. Actual speed depends on the nature of the liquid, bottle diameter, bottle height, neck size, and fill volume. Lodha's technical team can calculate the expected throughput for your specific product and bottle combination.

It handles a wide range of liquids — thin syrups, oral suspensions, herbal juices, health tonics, essential oils, antiseptic solutions, shampoos, conditioners, body washes, hair oils, face washes, and other free-flowing to mildly viscous liquids across pharma, Ayurvedic, and cosmetic applications.

The LI-BF 4 handles both round and flat glass and plastic bottles — from small 15 ml pharmaceutical bottles to large 500 ml Ayurvedic tonic bottles and cosmetic packaging containers. Output speed varies by bottle format — and Lodha's team can confirm the exact speed for your specific bottle.

The LI-BF 4 is enclosed in an elegantly matt finish stainless steel body — compact enough to fit into standard pharmaceutical and cosmetic production bays without requiring significant floor space, yet powerful enough to run a full mid-scale production shift without throughput compromise.

Yes. The machine is built in full stainless steel finish including the frame structure as per cGMP guidelines. All liquid-contact parts are exclusively SS 316 material — the pharmacopoeially accepted standard for pharmaceutical liquid-contact equipment. SS 316 contact parts are removable for autoclaving, sterilization, and CIP cleaning between batches.

It is ideal for mid-scale batch pharmaceutical liquid oral and topical products — antibiotic syrups, cough syrups, antacid suspensions, pediatric formulations, multivitamin syrups, iron-folic acid liquids, antiseptic solutions, topical liquid preparations, and nutraceutical syrups in 30 ml to 500 ml bottle formats.

When no bottle is detected below the filling nozzle, the machine automatically stops the fill cycle — preventing product spillage, liquid wastage on the conveyor, and production area contamination. It is a mandatory GMP process control feature that CDSCO, WHO-GMP, and state drug authority inspectors verify during pharmaceutical line audits.

If the bottle feed is interrupted due to a gap in supply, a conveyor jam, or an upstream issue — the machine stops completely and automatically. This protects product quality, prevents uncontrolled filling operation, and ensures batch integrity is never compromised by an unattended filling gap — a critical documented process control feature for pharmaceutical manufacturing.

The machine delivers a filling accuracy of ±1% — ensuring every bottle receives a precisely controlled volume within one percent of the target fill. This level of accuracy meets pharmacopoeial fill volume requirements and directly reduces product giveaway on every production run.

Yes. All SS 316 contact parts — filling nozzles and piston-cylinder assemblies — feature an easy removal system specifically for autoclaving, sterilization, and CIP cleaning between batches. This makes the LI-BF 4 compatible with aseptic or semi-aseptic pharmaceutical liquid filling environments where contact part sterilization is a regulatory requirement.

Yes. The machine's consistent four-head volumetric filling, SS 316 contact part specifications, "No Bottle – No Fill / Machine Stop" safety systems, and AC variable frequency drive parameters provide the documented process control data needed to support IQ/OQ/PQ validation protocols for CDSCO, WHO-GMP, and export market pharmaceutical regulatory submissions.

Mid-scale pharma manufacturers producing 3,000–5,000 bottles per hour need the LI-BF 4's 80 bottles per minute throughput to keep pace with their downstream capping and labeling equipment speeds. The 4-head model fills the production volume gap between the entry-level 2-head (60 BPM) and the larger 6-head or 8-head models — giving mid-scale manufacturers the right balance of speed, investment, and footprint.

Ayurvedic manufacturers producing Arishtas, Asavas, herbal juices, syrups, and health tonics need a filling machine that handles naturally fermented, mildly viscous liquids with high accuracy across multiple bottle formats. The LI-BF 4's 4-head simultaneous filling, diving nozzle foam control, ±1% accuracy, and easy volume changeover make it the go-to mid-scale filling solution for growing Ayurvedic manufacturing units across India.

Yes. Arishtas and Asavas are free-flowing fermented herbal liquids with mild natural carbonation and foaming tendency. The diving nozzle bottom-up filling system fills from below the liquid surface — minimizing air contact, eliminating foam generation, and protecting the natural fermentation character of these classical Ayurvedic formulations during the fill cycle.

Yes. The machine's full SS construction, SS 316 liquid-contact parts, "No Bottle – No Fill" process control, autoclavable contact components, and AC variable frequency drive system provide the documented equipment compliance evidence that AYUSH GMP inspectors require during Schedule T compliance audits for Ayurvedic liquid manufacturing facilities.

Changeover is fast and requires zero mechanical change parts for speed adjustment — the AC variable frequency drive handles speed changes electronically from the control panel. Fill volume adjustment involves changing the piston stroke — a quick setting that takes minutes. For different bottle formats, the optional turntables with individual drives auto-match bottle flow speed. Most Ayurvedic product changeovers can be completed within one shift without extended downtime.

Yes. The machine handles oils of varying viscosities — from light herbal essential oils to medium-viscosity therapeutic Ayurvedic oils. The SS 316 contact parts are fully chemically inert to essential oil and herbal oil formulations — no leaching, no reactivity, and no impact on the aroma, potency, or therapeutic properties of oil-based Ayurvedic products during filling.

Contact Lodha International LLP with your product details, liquid type, bottle specifications, fill volumes, and target output — and their technical team will provide a tailored recommendation and quotation.
📞 +91 9687731331 | +91 9687631331 | +91 9537131331
📧 info@lodhapharma.com
🌐 www.lodhapharma.com
15,500+ machines installed across 50+ countries since 1995 — India's trusted pharmaceutical, Ayurvedic, and cosmetic packaging machinery manufacturer from Ahmedabad, Gujarat.
